Segger

Connectronix J-Link PRO PoE 8.12.28 is SEGGER's

Connectronix J-Link PRO PoE 8.12.28 is SEGGER's

Rs. 129,000.00
Rs. 129,000.00
Sale Sold out
Shipping calculated at checkout.

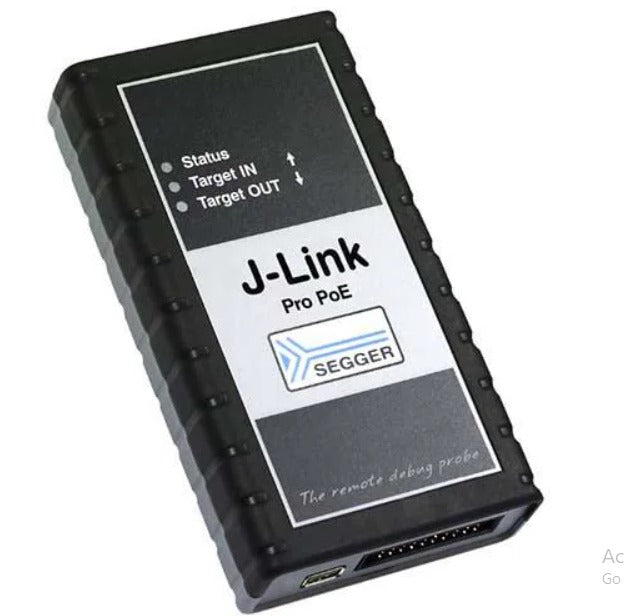

SEGGER Microcontroller J-Link Pro PoE is a specialized programming and debug probe with up to 4MB/s download speed. This device can draw power through Ethernet and supplies power to the target through a debug interface or a USB A connector. The J-Link Pro PoE includes a web interface (web server) for easy TCP/IP configuration and integrated licenses for unlimited breakpoints in RDI/RDDI and flash memory. This device consists of built-in VCOM functionality and control software for Linux, macOS, and Windows.

The J-Link Pro PoE features an Embedded Trace Buffer (ETB) trace interface and host interfaces such as Ethernet, Ethernet PoE, and USB. This device also features a 200kHz sampling frequency, 50μA resolution, and IEEE 802.3af PoE type 1, class 3 PoE supply voltage. The J-Link Pro PoE supports a wide range of microcontrollers. This device comes with a USB cable and a 0.1″ target ribbon cable. The J-Link Pro PoE is ideal for use in test farms.

Features

  • PoE-enabled Ethernet interface
  • Up to 4Mb/s download speed
  • Switchable power out via USB-A or 20-pin header
  • Built-in VCOM functionality
  • Unlimited breakpoints in flash memory (Flash Breakpoints)
  • Use with Ozone, RDI/RDDI, and J-Flash
  • Comes with web interface for easy TCP/IP configuration (built-in webserver)
  • Supports a broad range of microcontrollers
  • Supports direct download into RAM and flash memory
